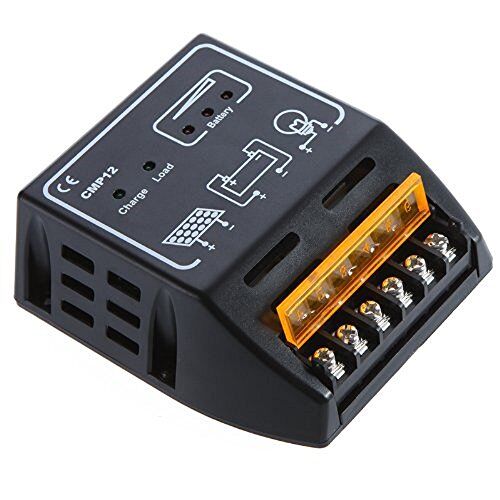

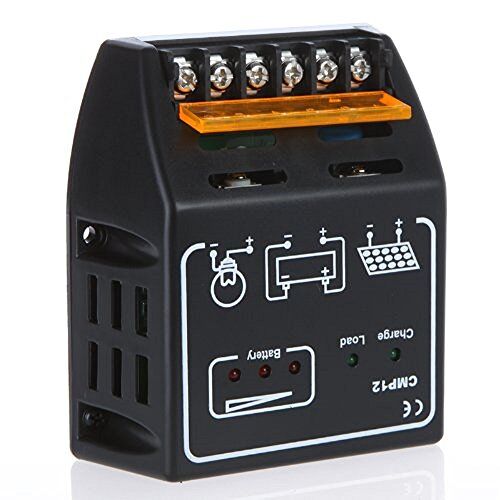

yueton 10A 12v/24v Solar Charge Controller keeps the battery of your small solar power system in a good shape by automatically managing the processes of overcharging and over -discharging and avoiding the reverse battery discharging during the night.
It provides automatic over current protection as well.
The charge controller has:
- Overloading and short-circuit protection.
- Reverse discharging and reverse-polarity protection
- Under-voltage and over-charging protection
This solar charge controller is easy to use and set up and it is designated for a solar panel with 12V or 24V nominal voltage.
It automatically detects the solar panel voltage and auto switches to the corresponding voltage.

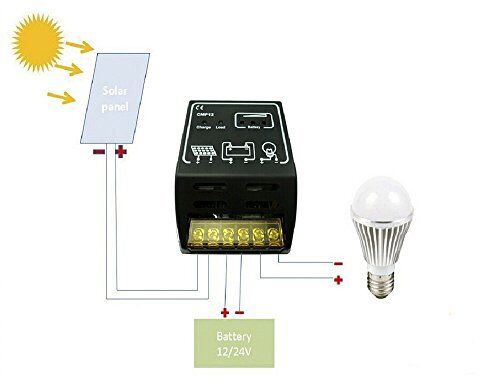

Just connect the yueton 10A 12v/24v Solar Charge Controller to your battery first and then connect the solar panel and the inverter or other applications.
The solar charge controller is suitable for a very small solar system with solar panel’s short circuit current up to 8 A.
Rated voltage: 12V or 24V
Rated charging current: 10A
Rated load current: 10A
Over Charging Voltage: 14V / 28V
Over Charging Revover Voltage:13.2V/26.4V
Floating Charging Voltage:13.2V/26.4V
Over Discharging Voltage:10.8V/21.6V
Over Discharging Recover Voltagey: 12.3V/24.6V
Load over recover voltage:15V/30V
Max Solar Battery Open circuit voltage:25V/36V
Working temperature: -20 ~ +60℃
Item size: 10.2 * 9.5 * 3.8cm / 4 * 3.7 * 1.5in
Item weight: 145g / 5.07oz
Package size: 11 * 10 * 4.5cm / 4.3 * 3.9 * 1.8in
Package weight: 154g / 5.39oz
1 * Solar charge controller
1 * User’s manual
