Renogy 100 Watts 12 Volts Monocrystalline Solar Panel

$155.52 $134.04 (as of April 23, 2018, 6:23 pm) & FREE Shipping. Details

Renogy’s High Efficient Small Size 100w Solar Monocrystalline Panel For 12v Nominal Voltage With Prebuilt Diodes And Set Of Connectors  Facilitating Fast and Easy Installation.

Reliable: Specially designed to withstand high winds, snow load and hail.

Encapsulated in corrosion resistant aluminium frame.

Attractive 25 year Solar Panel Warranty.Use it for your off grid activities: camping, powering RV vehicles,boats, trailers and charging 12V batteries.



Usually ships in 24 hours

Category:

Description

This 100W rated Monocrystalline Solar Panel is the Renogy’s bestselling flagship product.

It’s high efficiency and small size makes it perfect for your  off-grid needs.

Reliable Solar Panel: Specially designed to withstand high winds, snow load and hail.

Encapsulated in a corrosion resistant aluminium frame.

You can use it for:

-powering your RV vehicles or boat

– when you are camping

-building an off grid solar power system

These solar panels can be used for a solar power system with 12V nominal voltage.

The main advantage of this solar panel is that it comes with a set of MC4 connectors and diodes allowing you effortlessly to connect several solar panels  in series to :

  • Get more solar power
  • Obtain higher nominal voltage:24V or 48V.

These solar panels has rated 100Wp STC solar power which  can deliver during the summer time  with ideal solar panels tilting about:

-( 500 -595) W on average for whole USA territory at averaged  summer Peak Sun Hours = (6-7) h

– ( 500 -595) W on average for whole UK  territory   at summer Peak Sun Hours = (6-7) h

-up to 500-680 W on average for Australia at averaged summer Peak Sun Hours = (6-8) h

(The above calculated data take into account 25% solar power losses due to high temperature. Please take into account that inside the solar panel the temperature may reach about  (140-158) °F (Fahrenheit )  (60-70) °C  (Celsius) which in turn decreases the solar power produced )

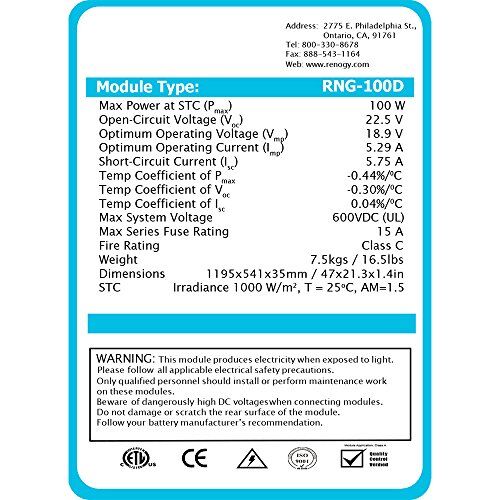

Solar Panel’s Technical, Mechanical characteristics and Warranty:

  • Optimum Operating Current (Imp): 5.29A
  • Open-Circuit Voltage (Voc): 22.5V
  • Short-Circuit Current (Isc): 5.75A
  • Output Cables: 4.0 mm2 (0.006 in2), 800mm (31.5 in)
  • Connectors: MC4 Connectors
  • prebuilt diodes assembled in a junction box

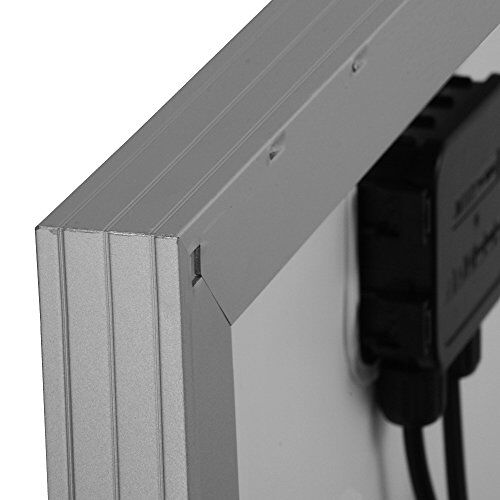

  • long lasting aluminium frame
  • Can Withstand high wind (2400Pa) and snow loads (5400Pa)
  • Size of 100W Monocrystalline Solar Panel: 47-1/16″ X 21-5/16″ x 1-7/8″
  • Warranty: 25-year transferable power output warranty: 5-year/95% efficiency rate, 10-year/90% efficiency rate, 25-year/80% efficiency rate
    5-year material and workmanship warranty
